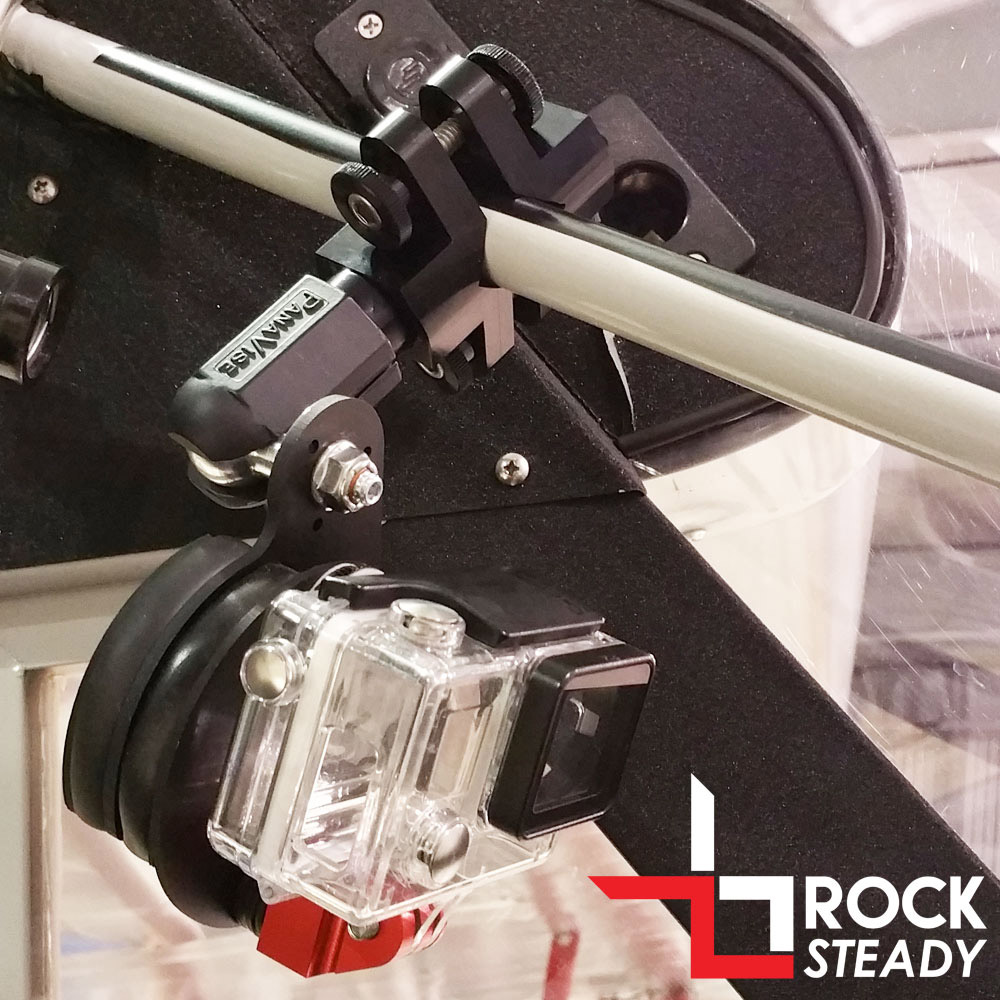

With the Rock Steady Clamp base you can mount your camera to any frame, round tubing, handle, or gear leg. This all metal base clamps around any tubing 1/2" - 1" diameter. Includes thumb screws with hex drives to be installed by hand or with a hex wrench. The aluminum block has countless configurations, such as with a U-bolt clamp for installs with tight clearances, with longer bolts for wide reaches, or simply bolted to a flat surface. This clamp base is compatible with all Rock Steady mounts.
FAA Attachment Rating: SAS, FFM, or APA
SAS - Safe & Secure - If installed properly, this mount is safe and secure to withstand forces of flight. If this mount is only rated safe and secure, then it may or may not meet the other categories on its own or in all installations. However, this mount is at least suitable for external attachment on all experimental aircraft. Though experimental aircraft do not fall under the same regulations for installation as certified aircraft, violations are still possible under FAR 91.13 and 91.15 such as with sticky mounts, suction cups, and plastic mounts failing. If installed, maintained, and operated properly, this mount is of the highest quality to never fail.
FFT - FAA Temporary - This FAA friendly mount may be considered a temporary mounting device. This device uses attachment methods that may be done by hand, not requiring tools. This device, in most cases can be attached temporarily to an aircraft without affecting the integrity of the attachment point if used properly. Final responsibility is on the pilot using a temporary device. The FAA does not support installations that are not approved. Good references for portable electronic devises are AC 91-21-1C, AC 20-173, and ACE-100.
FFM - FAA Minor Alteration - This camera mount meets all practical design criteria falling under a FAA minor alteration. Under a minor alteration the FAA requires only a logbook entry from an A&P mechanic. This commercial off the shelf product uses recognized materials and design aspects that may be recognized by AC 43.13. Each minor alteration varies between aircraft types and mounting locations. Final responsibility is on the A&P mechanic making the logbook entry. The use of AC 43-210A may be helpful in determining your installation can be considered a minor alteration.
APA - FAA Approval Available - This camera mount has available an FAA Approval for certain cameras on most certified aircraft. Pre-approved engineering data can be purchased through Flight Flix allowing a FAA approved installation on your aircraft. Complete paperwork is sent to you with pre-approved data and installation instructions for your specific aircraft, camera, and mounting location. This approval allows a simple approval process for you and your IA. We have already done all the hard work. Eliminate tedious field approvals and inconsistencies between FSDO's.
