**PLEASE REACH OUT BEFORE PURCHASE TO ENSURE THIS IS COMPATIBLE WITH YOUR AIRCRAFT TYPE**
Works with Your Existing Mode C or S Transponder

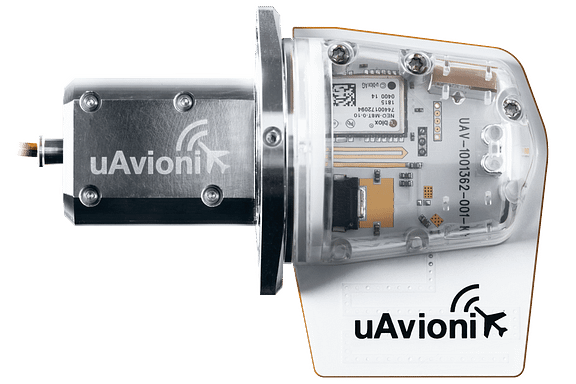

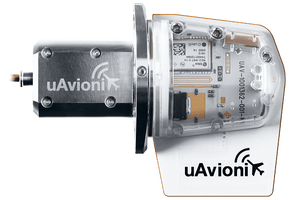

tailBeacon works with any existing transponder. uAvionix’s patented power transcoder technology seamlessly communicates with your existing transponder, any transponder, over your aircraft’s electrical system.
Self-Contained WAAS GPS
tailBeacon contains its own TSO Certified uAvionix truFYX WAAS GPS. You have no additional GPS to purchase or integrate with!
Watch Your Six
There’s more to tailBeacon than just ADS-B compliance. By replacing your existing rear position light with tailBeacon, you’re getting a 2x brighter LED nav light with a fraction of the power consumption. With tailBeacon’s 20,000 hour rated LEDs, you can fly with confidence knowing your rear’s covered.
Mounts with a Turn
The new tailBeacon is the easiest, most affordable installation on the market. Simply remove your existing position light, install the mounting bracket, connect to existing power wires, slide in tailBeacon, and turn to lock in place. It’s that easy!
Tech Specs
| Specification | Value |
|---|---|
| Input Voltage | 11-31V DC |
| Operating Power | 3 watts |
| Size | 92x43x73mm |
| Weight | 70 grams |
| SDA/SIL | 2/3 |
| Operating Temp | -45 to 70°C |
| 978MHz UAT Transmitter | |
| Power Classification | DO-282B Medium Power |
| WAAS GPS | |
| Tracking Reacquisition Cold Start |
-166dBm -160dBm -148dBm |
| LED Position Light | |
| Color | Aviation White |
| Intensity | 40 candelas |
| Wi-Fi Configuration | |
| Physical | 802.11b/g/n |
| App Compatibility | iOS, Android |
| Power Transcoder | Decodes Mode A,C and S via Power Transcoder |
