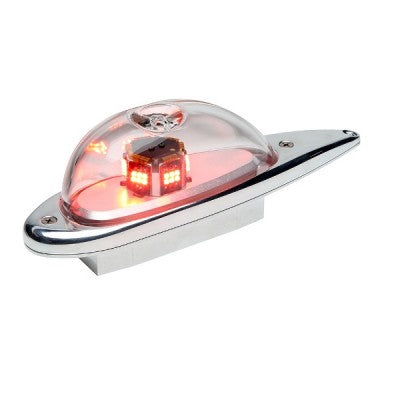

Model 90724 Series is a self-contained LED anti-collision beacon. It's solid-state circuitry and LED light source obsolete the "old style" mechanical oscillating beacons as well as the Whelen 90044 Series quartz halogen flashing beacons. Benefits include no moving parts, no EMI/RFI, no inrush current spikes and crisp on off cycles. There are several models available to provide compatibility with existing mounting patterns and profiles, thus eliminating the need to alter the aircraft.
Specifications
Power Consumption: 0.45 Amps @ 28 VDC
LED Color: Aviation RED
Weight: 1.8 lbs (816gm) (unless otherwise noted)
Exposed Height: 2.70" (69mm)
Lens Color: Clear glass
Replaces: Whelen: 90044 Series and Grimes: G9950-( ), 40-0100-( ), 30-2140-( ), 40-0117-( ), 40-0127-( ), 30-2647-( )
P/N: 01-0790724-14
New
It is the buyer’s responsibility to verify compatibility and applicability before purchase. If you have questions, please contact us prior to ordering.
