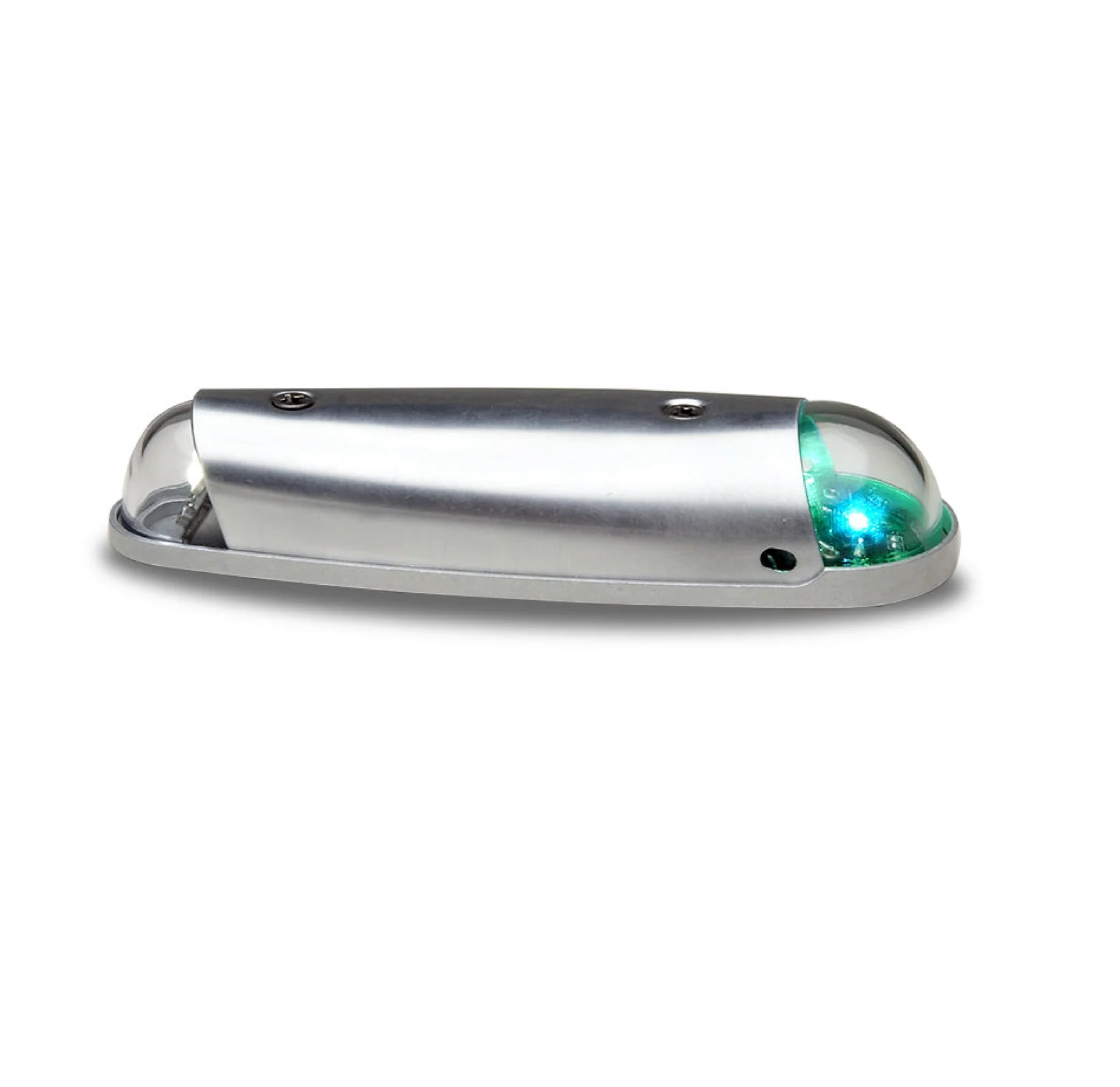

Model 90377 Series is a wing tip mounted position light assembly utilizing LED's for both the forward & tail position lights, eliminating the need for a tail mounted position light. The LED's provide a significant reduction in current draw over conventional position light bulbs. Direct replacement (Exact Footprint) for the Whelen Model A675PG/PR series.
LED Navigation Lights Power Consumption: 0.5 Amps @ 14V, 0.25 Amps @ 28 VDC
LED Colors: Aviation Red, Aviation Green and Aviation White
Weight: 0.35 Lbs (159gm)
Exposed Height: 1.08 (27mm)
Exposed Width: 1.87 (47mm)
Exposed Length: 5.69 (145mm)
Lens: Clear Polycarbonate
P/N: 01-0790377-03
New
It is the buyer’s responsibility to verify compatibility and applicability before purchase. If you have questions, please contact us prior to ordering.
