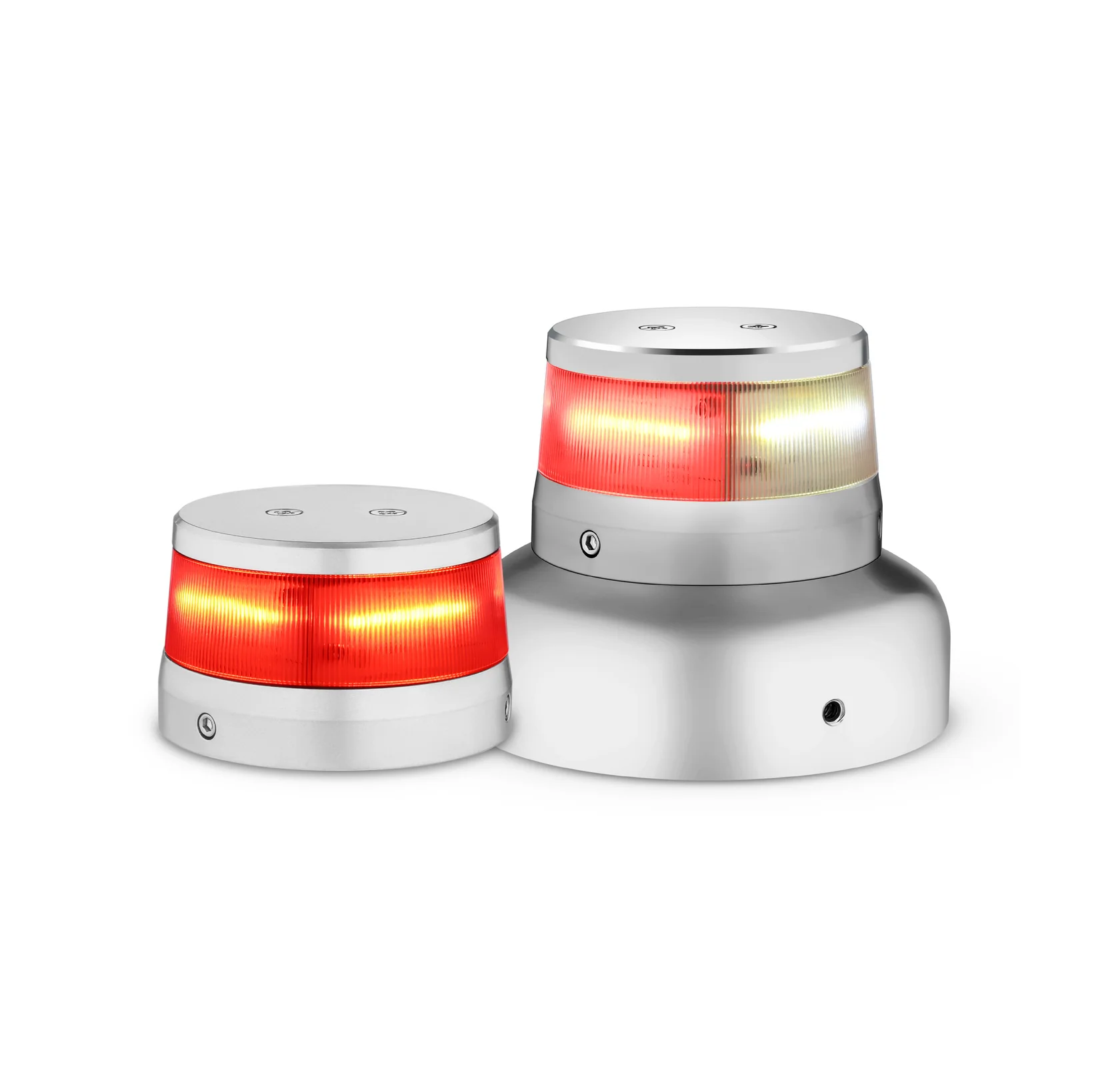

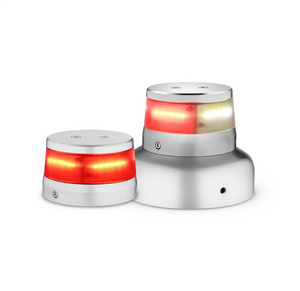

ORION 360 Beacons are the 4th Generation LED beacons for fixed-wing aircraft. These are designed to replace legacy 2.6" and 3.75" round beacons. ORION 360 beacons are lower profile than legacy product by 60%. Please see documents for more information on this product. Available in 14 VDC and 28 VDC. Red, Red / White Split, and White assemblies available.
Drawing: 72010
Dimensions:
Narrow Base: L: 2.60" W: 2.6" H: 1.60"
Wide Base: L 3.67" W: 3.67" H: 2.83"
Weight: 0.30 lbs (Narrow Base) 0.37 lbs (Wide Base)
Current Draw:
14VDC: 0.53 Amps (Average) | 2.8 Amps (Peak)
28VDC: 0.26 Amps (Average) | 1.4 Amps (Peak)
P/N: 01-0772010-20
New
It is the buyer’s responsibility to verify compatibility and applicability before purchase. If you have questions, please contact us prior to ordering.
