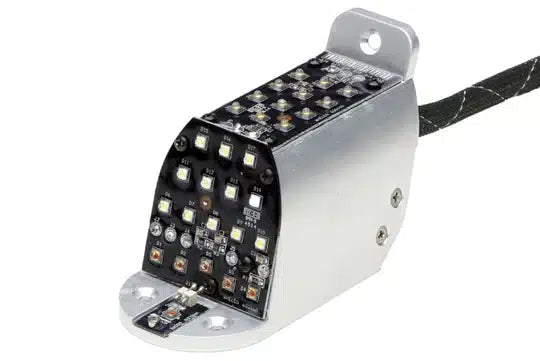

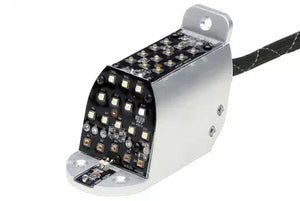

Model 71170 Series is an all LED wingtip anti-collision/forward position light assembly. The design is intended to be mounted behind an existing lens and is operated by an external flasher/ current source box (ref - 71234). Unit complies with TSO-C96a Class II (400 ecp) anti-collision light requirements, and TSO-C30c forward position light requirements.
Specifications:
Power Consumption: 0.53 Amps avg. 2.8Amps Peak @ 0.25 sec. 28 VDC
Weight: 0.45 Lbs
Height (includes mounting flange): 2.33"
Overall Length: 3.97" •Width: 1.77" (44mm)
Input connector: MIL D38999/20F13-8PN
P/N: 01-0771170-01
New
It is the buyer’s responsibility to verify compatibility and applicability before purchase. If you have questions, please contact us prior to ordering.
