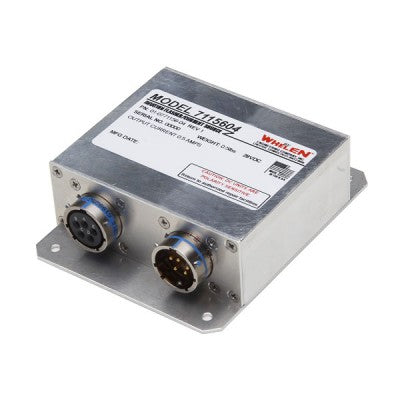

Model 71156 Series is an electronic 'Pulse' light flasher for use with Whelen Taxi & Landing LED lightheads (catalog and custom versions). 71156 is being integrated into aircraft model upgrades and new type certified aircraft.
Flasher operates four outputs steady on or will allow two outputs to be flashed or steady independent of the other. MS Connectors with aluminum housing. Tested in accordance with RTCA/DO-160 Environmental Tests.
Specifications
Power Consumption: 20A max (all outputs) @ 28V
Weight: 1.1Lbs (499gm)
Length: 5.0 (127mm)
Exposed Height: 1.8 (46mm)
Width: 4.56 (116mm)
Flash Rate: 90fpm (Combined)
P/N: 01-0771156-04
New
It is the buyer’s responsibility to verify compatibility and applicability before purchase. If you have questions, please contact us prior to ordering.
