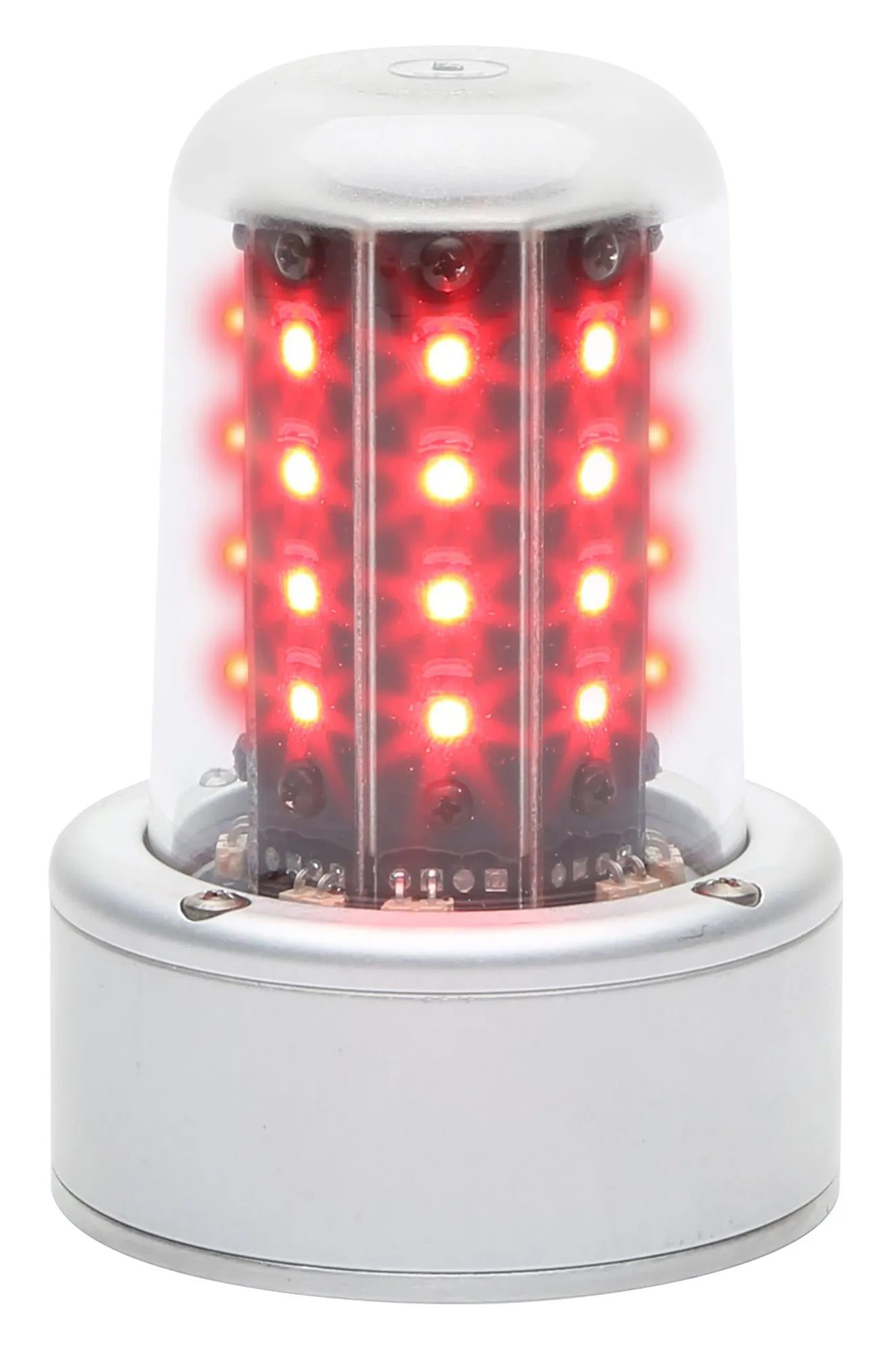

71080 Series LED Beacons
The 71080 series LED beacons are self-contained LED Anti-Collision lights (ref. Class I - 150 effective candlepower). They are designed to replace existing beacons utilizing a 2.5” diameter footprint. They can also replace remote mounted strobe lights (ref. Whelen A470 series) allowing for removal of the strobe power supply.
Internal mounting plate provided with choice of mounting holes to retrofit most existing mounting patterns.
Tech Specifications:
Current Draw:
14VDC: 0.90 amps avg., 4.0 amps peak at 0.30 seconds
28VDC: 0.45 amps avg., 2.0 amps peak at 0.30 seconds
LED Color: Aviation Red
Weight: 1.8 pounds (816gm)
Exposed Height: 2.70" (69mm)
Lens Color: Clear glass
P/N: 01-0771080-14
New
It is the buyer’s responsibility to verify compatibility and applicability before purchase. If you have questions, please contact us prior to ordering.
