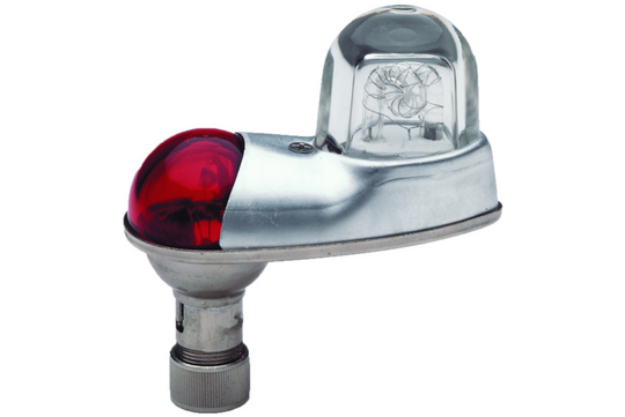

Wing tip with anti-collision & forward position lights. Can be used to convert non-Whelen position lights into a position/anti-collision light system. The small size allows for mounting into a wing tip enclosure. Available in 14 or 28 VDC and in a radio-shielded version. The forward position lamp is 26 watts.
Drawing Number: 70054
Weight: 0.6 lbs. (272gm)
Position Lamp Power Consumption: 2 Amps @ 14 VDC; 1 Amp @ 28 VDC
Exposed Height: 2.4 (61mm)
Length: 4.0 (102mm)
Width: 1.7 (43mm)
P/N: 01-0770054-00
New
It is the buyer’s responsibility to verify compatibility and applicability before purchase. If you have questions, please contact us prior to ordering.
